Hydro-Split TOWER Version
Indoor hydronic unit with base with DHW tank for Hydro Split systems
WISAN-YME 1 S + HQCN-NEE 1 TC A WISAN-PME 1 S + HQCN-NEE 1 TC A
Hydro-Split TOWER Version: Safe and eco-friendly
Safe and eco-friendly

A safe, flexible and sustainable system: indoor unit with hot water tank designed for systems that use water instead of refrigerant gas.

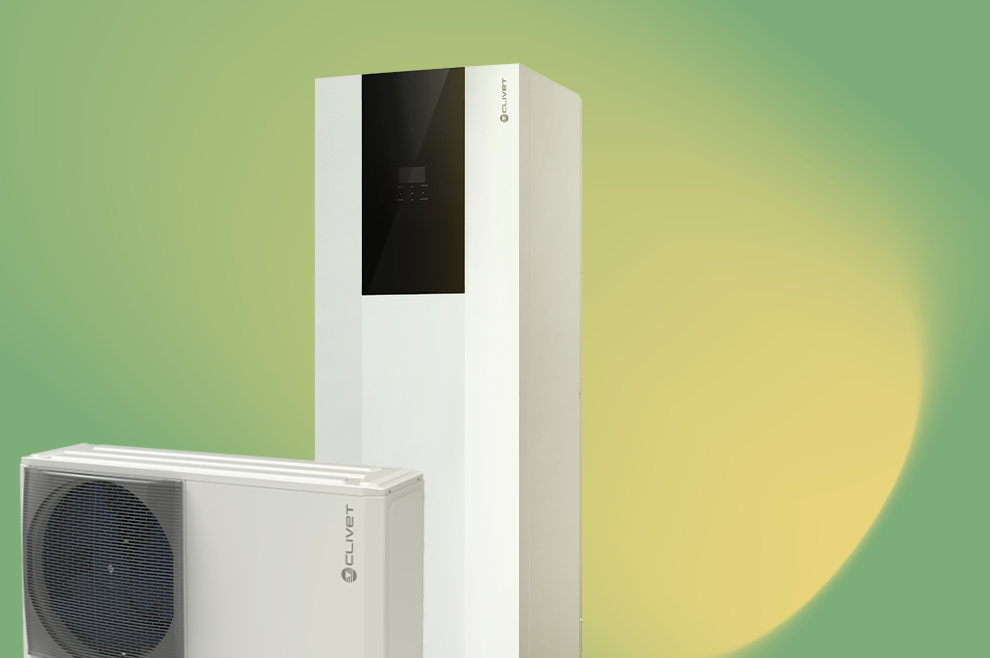

TOWER version HYDRO-SPLIT together with EDGE F: Total comfort in one system.
Total comfort in one system

Due to its versatility it can be combined with EDGE heat pump for consumption optimisation and maximum energy savings. Heating, cooling and domestic hot water production with a single compact tower-version system.

Practical installation

System designed for easy installation. Hydraulic components installation is performed by a plumber.

HYDRO-SPLIT TOWER: practical installation

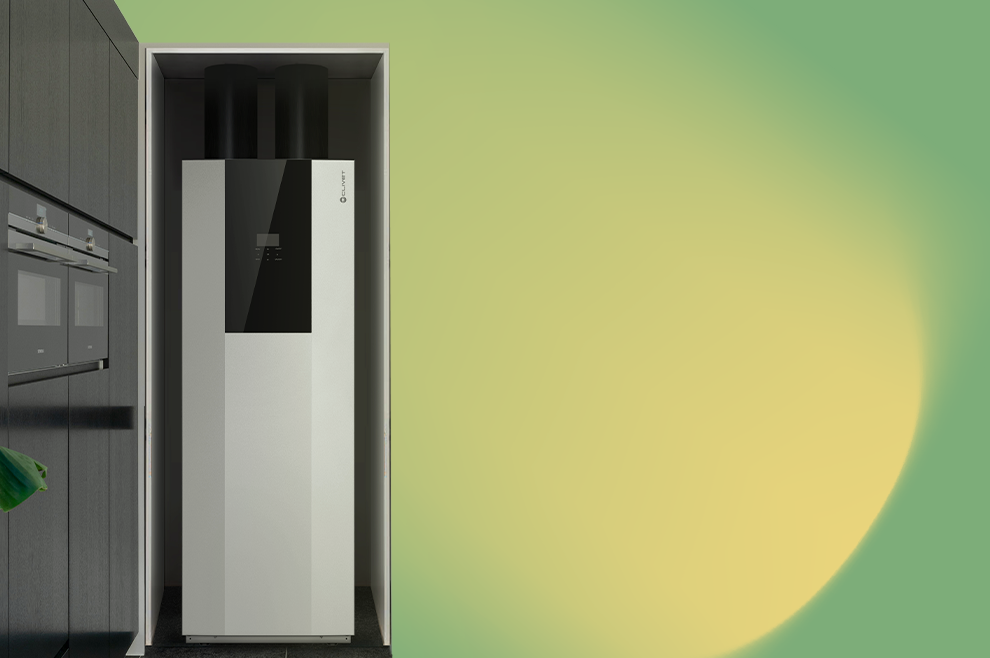

HYDRO-SPLIT Tower: clean and functional design
Clean and functional design

Clean and functional design. All system components are contained in an indoor room-saving module.

Created to please everyone

Well-finished shapes that fit the style of your home.

Free Cooling / Heating
Free Cooling / Heating
Provides Cooling / Heating for free (on certain conditions)
Instant DHW
Instant DHW
Quickly produces Domestic Hot Water on demand
€-Switch
€-Switch
Activates the most cost-effective generator
Clivet Eye monitoring
Clivet Eye monitoring
Can be monitored remotely with Clivet Eye
Free Cooling / Heating
Free Cooling / Heating
Provides Cooling / Heating for free (on certain conditions)
Instant DHW
Instant DHW
Quickly produces Domestic Hot Water on demand
€-Switch
€-Switch
Activates the most cost-effective generator
Clivet Eye monitoring
Clivet Eye monitoring
Can be monitored remotely with Clivet Eye

Technical Synthesis

Dimensions Indoor Unit (Length x Height x Depth)
Version with ACS 190 lt: from 600x1694x615 mm
Version with ACS 250 lt: from 600x2004x615 mm
Dimensions of Outdoor Unit (Length x Height x Depth)
From 1295x717x400 mm
Classe efficienza in riscaldamento (Clima medio)
A+++ (Water 35 °C)
A++ (Water 55 °C)
Consecutive showers available
from 4 to 5
Home surface range
from 42 to 170 m²
Sound level indoor unit
from 41 dB(A) (like a refrigerator)

Complete your system

Hydronic modules are designed to simplify installation, reducing both the operations and the expertise required, so you can immediately have your ideal climate in combination with a packaged heat pump.

EDGE EVO 2.0 - EXC: Complete your system with a packaged heat pump for heating, cooling and domestic hot water production EDGE EVO 2.0 - EXC

Complete your plant with a packaged heat pump EDGE EVO 2.0 - EXC

EDGE F: Complete your system with a packaged heat pump for heating, cooling and domestic hot water with refrigerant R-290

Complete your plant with a packaged heat pump with refrigerant R-290

Looking for Support?
Contact us: a Clivet consultant will answer your queries.

Explore our alternative solutions

HYDRO-SPLIT version BOX: WISAN-YME 1 S + HQCN-NEE 1 BC A WISAN-PME 1 S + HQCN-NEE 1 BCÈ piccola ma potente
Hydro-split BOX Version

Wall-mounted indoor unit for your Hydro-Split system.

WISAN-YME 1 S + HQCN-NEE 1 BC A WISAN-PME 1 S + HQCN-NEE 1 BC

HYDRO-SPLIT version MINI, wall-mounted indoor unit
HYDRO-SPLIT MINI version

Wall-mounted indoor unit with DHW tank for Hydro-split systems

WISAN-YME 1 S + HQCN-NEE 1 MC A - WISAN-PME 1 S + HQCN-NEE 1 MC

Hydro-split INVISIBLE Version, Invisible, uncased indoor unit for your Hydro-Split system.
Hydro-split INVISIBLE Version

Invisible, uncased indoor unit for your Hydro-Split system.

WiSAN-YME 1 S + HQCN-NEE 1 IC A WiSAN-PME 1 S + HQCN-NEE 1 IC

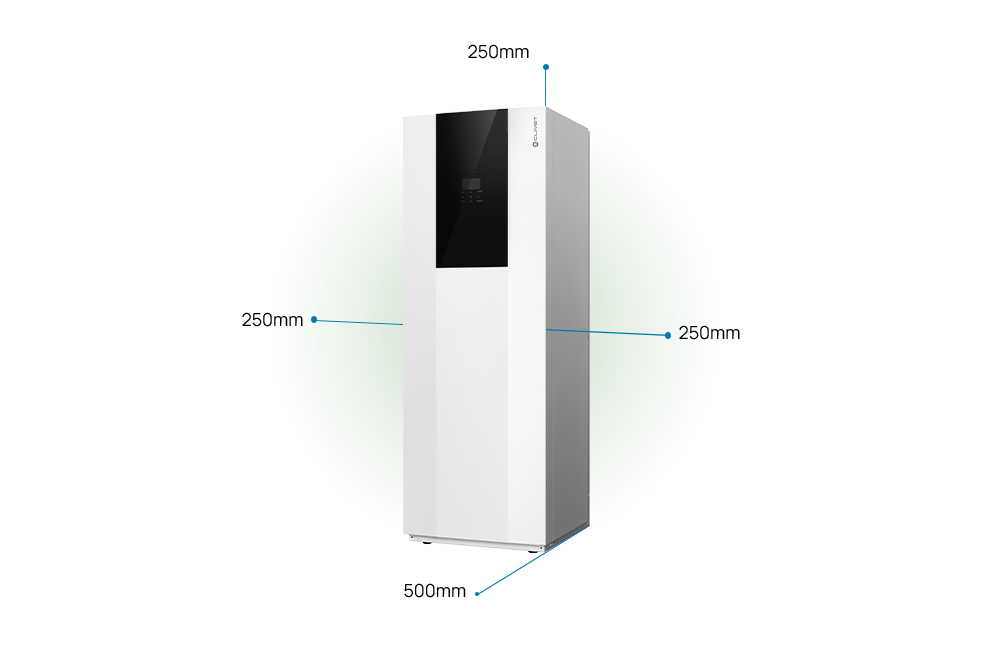

Distances to maintain indoor unit: 500 millimetres front, 250 millimetres both sides, 250 millimetres top side.
Optimised spaces

It is essential to comply with the distances indicated by the green areas to ensure correct operation of the unit. Check or ask one of our consultants to study the best location in your environments.

Technical Specifications

Size
Dimensions Indoor Unit (Length x Height x Depth)
Version with ACS 190 lt: from 600x1694x615 mm Version with ACS 250 lt: from 600x2004x615 mm
Dimensions of Outdoor Unit (Length x Height x Depth)
From 1295x717x400 mm
Operating range (outside air)
Operating range in Heating
-25 / 35 °C
Operating range in Cooling
-5 / 43 °C
Seasonal Efficiency
Classe efficienza in riscaldamento (Clima medio)
A+++ (Water 35 °C) A++ (Water 55 °C)
Domestic Hot Water Production
A+ with Withdrawal profle L or XL
Performance
Heating (Outdoor air 7 °C / water 35 °C)
from 4.20 kW to 15.9 kW: COP up to 5.15
Heating (Outdoor air 7 °C / water 35 °C)
from 4.70 kW to 13.1 kW: COP up to 3.20
Cooling (Outdoor air 35 °C / water 18 °C)
from 4.50 kW to 14.2 kW: EER up to 5.50
Water mixed at 40 °C
Up to 269 lt
Dimension
Consecutive showers available
from 4 to 5
Home surface range
from 42 to 170 m²
Sound power
Sound level indoor unit
from 41 dB(A) (like a refrigerator)
Sound level of outdoor unit
from 53 dB(A) (like moderate rain)
Possible combinations
Single booster single-area system: Heating / DHW
  1. outdoor unit
  2. indoor unit
  3. heating area
  4. bypass*
  5. hydraulic separator single-area kit plus pump
  6. DHW recirculation pump
  7. SwitchConnect Wi-Fi receiver
  8. Wi-Fi chronothermostat HID-TConnect2

*from external supply

Single booster single-area system: Heating / DHW

System elements:

ELFOSUN3: flat-plate solar thermal collector for combination with heating and domestic hot water production systems
ELFOSUN3

Flat-plate solar thermal collector for combination with heating and domestic hot water production systems

F-L / F-XL / FH-XL

CONTROL4 NRG
CONTROL4 NRG

Comfort and energy assistance for Clivet Smart Living

HID-TCONNECT2: CSmart Wi-Fi thermostat makes it possible to monitor your indoor climate via Clivet Home Connect App
HID-TCONNECT

Chronothermostat with temperature control and management via App /Voice control
