DUCT 2

Ducted indoor unit for MULTISplit systems

ID3-XY 27M÷53M

DUCT 2: Brilliantly managed ventilation

Brilliantly managed ventilation

The unit sets the fan accurately to adjust the air flow to the system setup and have the best air distribution in every room.





DUCT 2: Automatic cleaning, low maintenance, graphic danger symbol or alarm.
Self-cleaning, low maintenance required

I-Clean function keeps the unit always clean and reduces manual operations. The split automatically cleans the exchanger and removes dust, mould and bacteria by means of a system that first traps impurities in the frost and then melt them away. You only have to regularly maintain the filter.

The split that goes on working….even in case of failure

The Emergency function has been designed for you, who can't afford to stop even just for a day. Minor faults are detected, however the system is allowed to continue operating while waiting for technical assistance.

DUCT 2: Automatic cleaning, low maintenance, graphic danger symbol or alarm.
Energy efficiency

Energy efficiency

Class A++ in cooling and class A+ in heating
Controllo Wi-Fi

Controllo Wi-Fi

Possible to manage the unit via App
Fresh Air

Fresh Air

Outside air can be lead into the room via a connection pipe, which keeps the indoor air fresh and healthy
Condensate drain pump

Condensate drain pump

Helps the indoor unit to dispose of condensation water
Energy efficiency

Energy efficiency

Class A++ in cooling and class A+ in heating
Controllo Wi-Fi

Controllo Wi-Fi

Possible to manage the unit via App
Fresh Air

Fresh Air

Outside air can be lead into the room via a connection pipe, which keeps the indoor air fresh and healthy
Condensate drain pump

Condensate drain pump

Helps the indoor unit to dispose of condensation water

Technical Synthesis

Heating and cooling power

from 2.7 kW to 7.0 kW

Operating range in Heating

from 0 to 30 °C

Operating range in Cooling

from 17 to 32 °C

Noise level

From 28 dB(A) to 49 dB(A) like a rustling leaf and like a refrigerator

Dimensions (Width x Depth x Height)

from 700x450x200 a 1100x700x249 mm

Compatible with:

Outdoor unit for Multisplit Systems: MU2-Y

Outdoor unit for Multisplit Systems

MU2-Y

Looking for Support?
Contact us: a Clivet consultant will answer your queries.
Contact us

Explore our alternative solutions

BOX 2 950x950: IA3-XY 70M÷160M

BOX 2 950x950

IA3-XY 70M÷160M

CEILING & FLOOR 2: IF3-XY 53M

CEILING & FLOOR 2

Ceiling and floor indoor unit for MULTISplit systems

IF3-XY 53M

CONSOLE 3: IC3-Y  27M÷53M

CONSOLE 3

Unité interne Console pour Systèmes MULTISplit

IC3-Y 27M÷53M

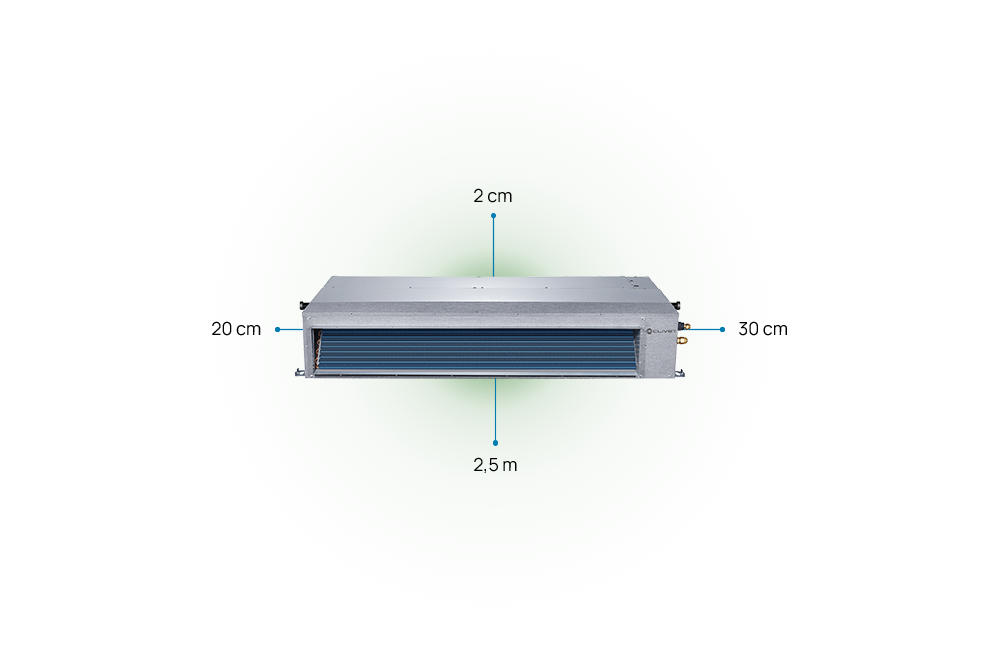

Respect distances to be maintained for DUCT 2: 20 and 30 cm at the sides, 2 cm above and 2.5 metres below.
Optimised spaces.

It is essential to comply with the distances indicated by the green areas to ensure correct operation of the unit. Check or ask one of our consultants to study the best location in your environments.

Technical Specifications

Power

Heating and cooling power

from 2.7 kW to 7.0 kW

Operating range

Operating range in Heating

from 0 to 30 °C

Operating range in Cooling

from 17 to 32 °C

Features

Air flow m3/h

from 230 to 1229

Noise level

From 28 dB(A) to 49 dB(A) like a rustling leaf and like a refrigerator

Dimensions

Dimensions (Width x Depth x Height)

from 700x450x200 a 1100x700x249 mm

External diameters

1/4" e 3/8" with size 27M e 35M 1/4" e 1/2" with size 53M 3/8" e 5/8" with size 70M
